Titanium Welding & Assembly

Review a titanium welded component or assembly using the controlled drawing, joint details, service conditions and required inspection.

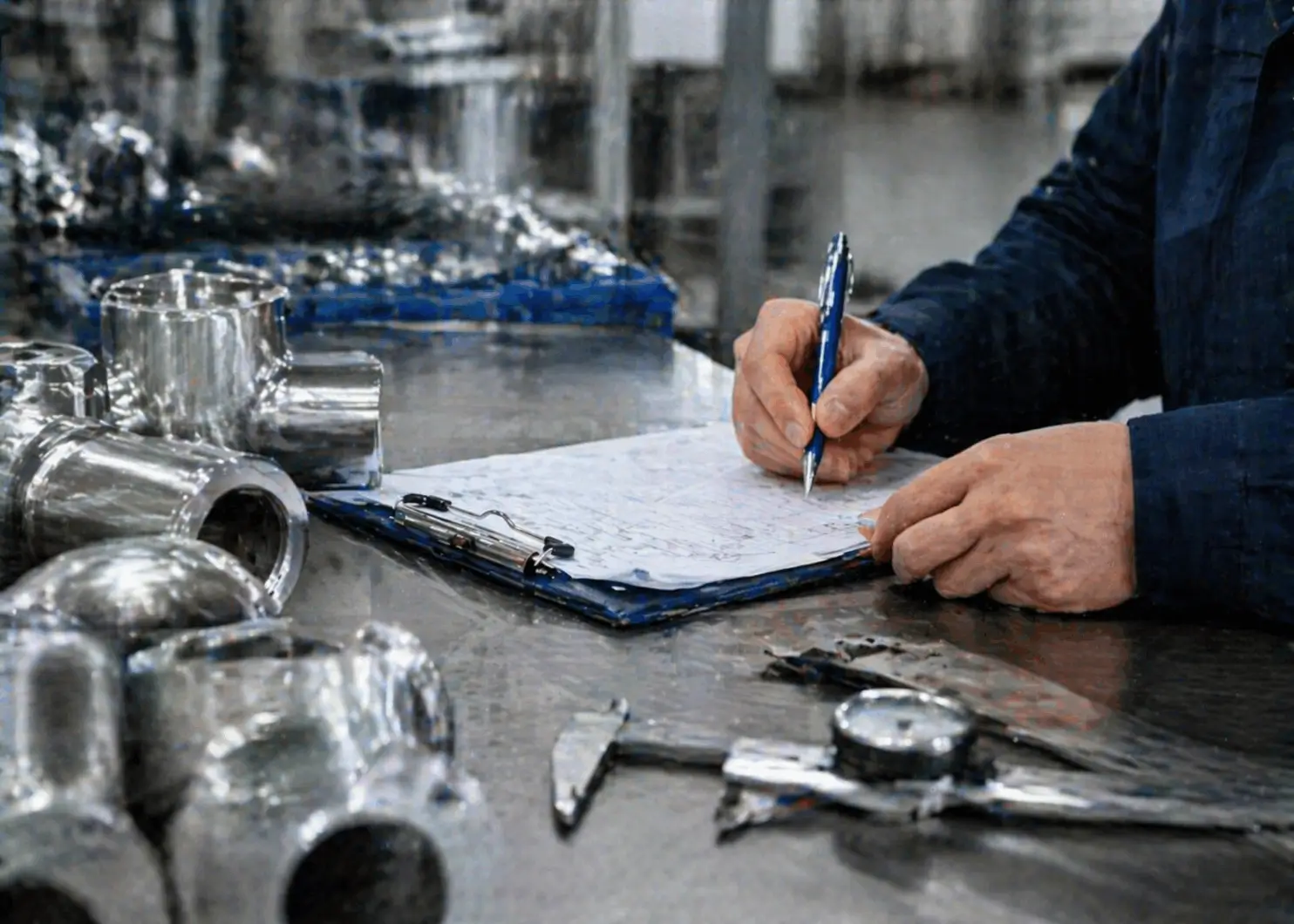

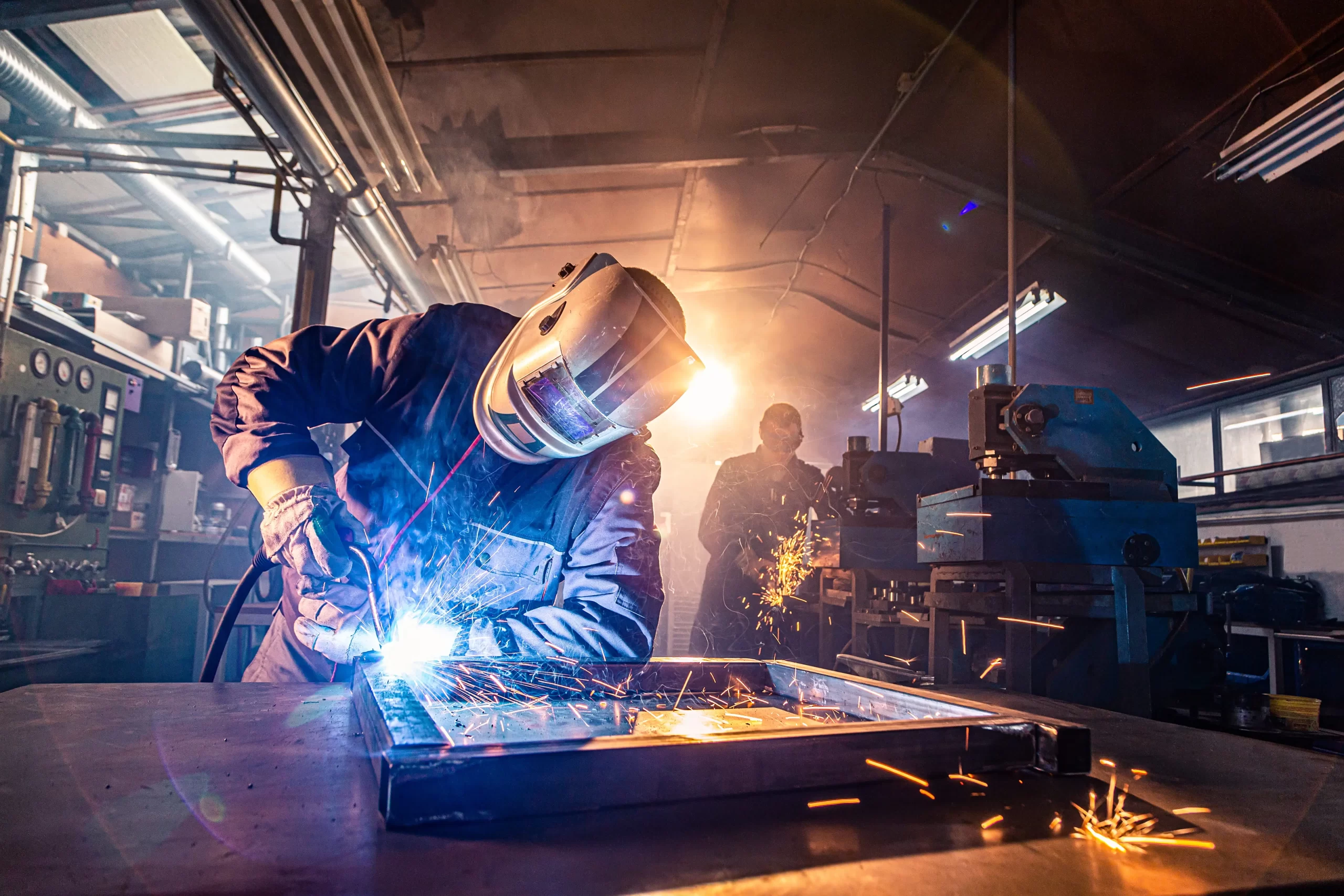

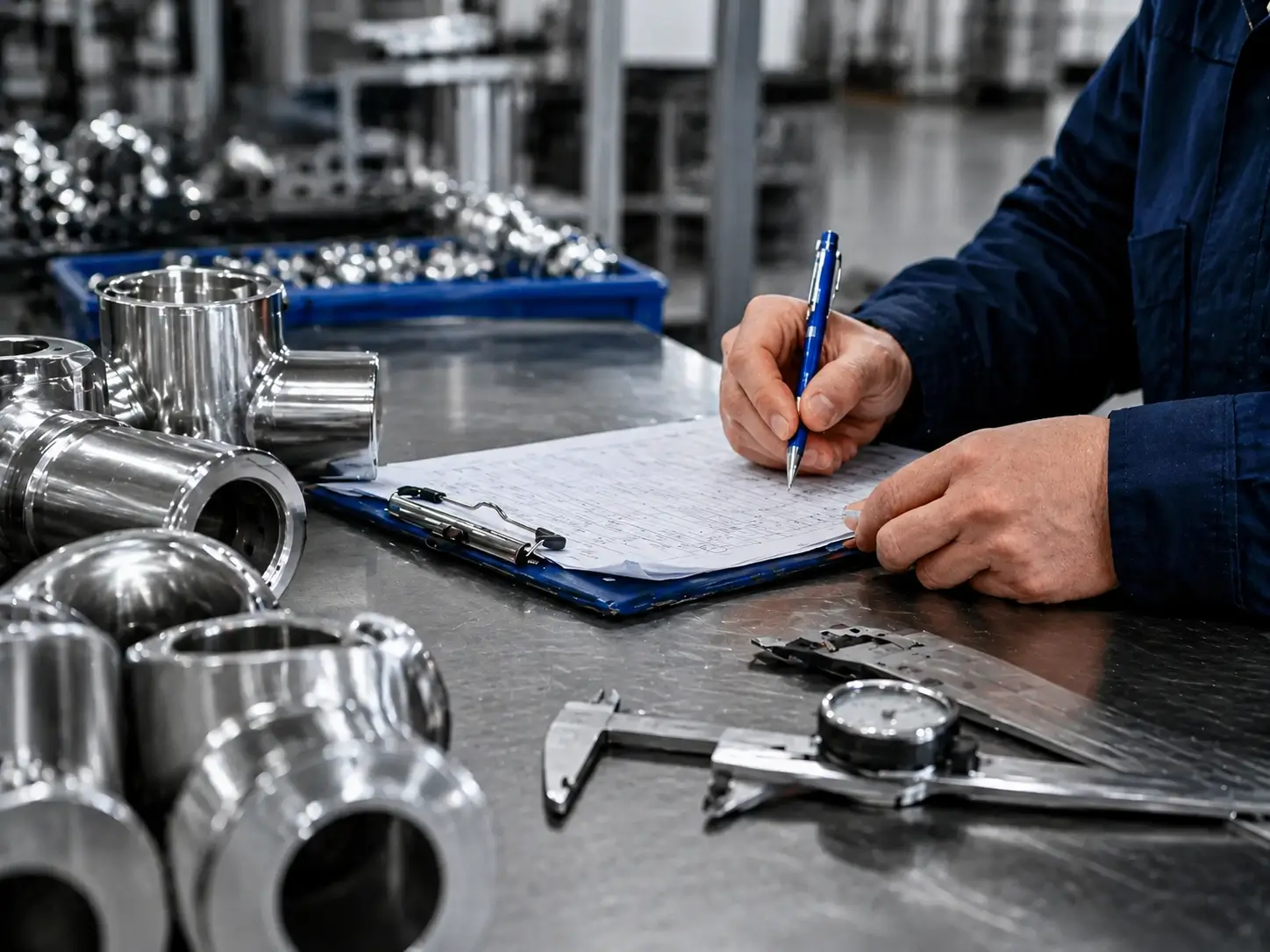

Titanium fabrication and welding service visual
Fabrication reference. Joint design, scope and acceptance are agreed for the actual assembly.

What Must the Welded Assembly Fit and Withstand?

Joint locations, critical mating dimensions and the conditions the assembly will see in service determine what must be reviewed. Define the welding and inspection requirements with the responsible equipment designer before quotation.

Fabricated parts and frameworks

Share the component drawings, material list and fit-up requirements. Mark interfaces that are machined or inspected after welding.

Assemblies for process equipment

Provide the media and applicable service or design requirements. Identify any weld inspection, leak testing or third-party involvement specified by the project.

Define Joint, Fit-Up and Acceptance Requirements

Use the assembly drawing and related specifications to identify what the fabrication quote covers and what the project owner must approve.

Requirements to agree before quoting the work
What to compareWhat to provideWhat it helps confirm
Materials and jointsProvide grades, thicknesses, joint details and any required weld procedure or filler specification.The proposed fabrication scope and approvals required.
Fit-up and datumsMark mating faces, connection points, tolerances and dimensions to check after welding.Which interfaces and fabrication stages need control.
Inspection basisName required visual, dimensional, NDT or leak checks and the governing acceptance criteria if specified.Which checks and records need to be quoted and agreed.
Final conditionSpecify post-weld machining, cleaning, finish, protected zones and packing.How the assembly should be released for installation or further processing.

Drawing-Based Titanium Fabrication

Review material and component scope separately from the welded assembly and any finishing or verification.

Technical and Purchasing Resources

Related Documents

Purchasing & drawing checklists

Titanium material & fabrication quotation checklist

A reusable worksheet for recording known conditions, units, document revisions and open questions.

Download CSV ↓
Check the revision on a saved document →

Before Requesting a Quote

What to Send for Review

  • Assembly drawing and bill of materials with the current revision
  • Material grades, joint requirements, service conditions and critical dimensions
  • Inspection, testing, finish and packing requirements
Submit Requirements for Review →

What to Agree Before Ordering

  • Agree the supplied hardware, fabrication and post-weld scope.
  • Confirm inspection and acceptance records before production.
  • Identify who owns equipment design, code approval and on-site commissioning.
